CDF Fundamentals Discussion

​@Rodrigo Cezar Leão can you please let me know the browser that you are using? I checked using Google Chrome and I was able to upload the CSV without any issues.

Hi ​@Rodrigo Cezar Leão! If you still have the same issue, just please continue and use the pre-uploaded table available for you. Going forward, you will just do

“IFSDB.assets” for the CDF transformation

I could do the upload changing Firefox for Chrome.

This information confused me a little. The spreadsheet that must be upload contains the assets data, like the tags names and is called AvevaNet. Later on, we use the IFSDB table to generate the timeseries and fill with the datapoints. So if I understand right what you said, I am suposed to get the spreadsheet AvevaNet data from the IFSDB.assets table?

​@Rodrigo Cezar Leão, I’m sorry for the confusion. There is an extra (backup) in the IFSDB db, with the assets table as well. In case you can’t upload the CSV file. You can continue and read from this table when generating the assets.

Hello,
I am redoing this course from two years ago,
and I am at the moment in (Working With CDF: Integrate) step: (Complete data set documentation)
And I noticed an issue I didn’t face before when selecting ( document Data Extraction) for my Data Catalog
I am unable to select the DataBase / Table
I even tried with anew data base, and other users databases, I tried both google chrome & Microsoft Edge
but to no avail, the box won’t tick:


I sometimes notice this message too when opening Document Extraction : ( Something went wrong: [object object] )


Is it something I missed ? I tried refresh many times and different browsers (new logins)

​@Maryam Al-Anssari I checked from my end and I was able to reproduce the same issue. It looks like a bug, I’ll create a support ticket for this. The support team will get back to you with an update.

Additionally, in working with CDF : Integrate
in Data points section,
I copied the code and adjusted it as instructed below:

-------------------------------------

SELECT
concat('Maryam1998:',dp.sensor) AS externalId,
cast(time_stamp/1000 as timestamp) AS timestamp,
cast(value AS double)

FROM IFSDB.values AS dp,

--selecting from _cdf.timeseries means we select from the timeseries we ingested to CDF earlier. We do this to make sure all the time series we try to add data points to actually exist

_cdf.timeseries AS ts WHERE CONCAT('Maryam1998:',dp.sensor) = ts.externalId
---------------------------------------
I still get empty timeseries ( no data points) in my dataset:


Kindly, could you please advise on what might the mistake be

Hello Mithila,
Sounds good, thank you for your help! :)

Hello,
I am facing the same issue mentioned here. Is there a solution that can be applied?

Thanks in advance for your help!

Additionally, in working with CDF : Integrate
in Data points section,
I copied the code and adjusted it as instructed below:

-------------------------------------

SELECT
concat('Maryam1998:',dp.sensor) AS externalId,
cast(time_stamp/1000 as timestamp) AS timestamp,
cast(value AS double)

FROM IFSDB.values AS dp,

--selecting from _cdf.timeseries means we select from the timeseries we ingested to CDF earlier. We do this to make sure all the time series we try to add data points to actually exist

_cdf.timeseries AS ts WHERE CONCAT('Maryam1998:',dp.sensor) = ts.externalId
---------------------------------------
I still get empty timeseries ( no data points) in my dataset:


Kindly, could you please advise on what might the mistake be

Hi ​@Thiago dos Santos Rodrigues

For a start, I see that the external id of your time series is “Maryam198” and not “Maryam1998”


If you make it match, you should get your datapoint added to your time series!

Best regards, Sofie

Hi Team,

I have this error, maybe someone know about this issue?

Thank You!

Hi ​@LEIDY JOHANNA CAMPOS QUESADA

According to the error message, it is complaining about the Data Set Id.
If I go into Data Catalog and search for your data set, I find it with ID 3665583308625309. Which is not the same ID as you used in the SQL Query. I think if you replace it, it will work!

Link to your data set:  https://cognite-learn.fusion.cognite.com/cdf-fundamentals/data-catalog/data-set/3665583308625309?cluster=api.cognitedata.com&workspace=data-management

Best regards,

I am facing the same issue with time series data points being empty as a few others mentioned.

I used this query to get data points into my time series, but when i click preview, i see the query returned 0 points.



SELECT
concat('Dinakar1990:',dp.sensor) AS externalId,
cast(time_stamp/1000 as timestamp) AS timestamp,
cast(value AS double)
FROM IFSDB.values AS dp,

--selecting from _cdf.timeseries means we select from the timeseries we ingested to CDF earlier. We do this to make sure all the time series we try to add data points to actually exist

_cdf.timeseries AS ts WHERE CONCAT('Dinakar1990:',dp.sensor) = ts.externalId



How can i fix this?

Hi ​@Dinakar Gollapinni

Your transformations was successful and you have your datapoint written to your time series.

The preview will not show anything for datapoints since we don’t really do anything to the data, we just make sure we place them into the correct time series.  If you look at the graph on your successful run in the “Run history” tab, you can see that datapoint were written.

I see that I need to update the datapoint data a bit, that the data it writes in goes back to 2020 (I think something it mentioned about this in the course??)

Best regards,

I don’ see any data in my time series.


I also tried to view in charts, i can’t see any data.


Also, when I go to a different tab and come back to my charts tab, my filters are reset and i have to search for my data again.

As mentioned, the data is only in 2020 (which I need to update). I found it when I went in to your time series.

Best regards,

You mentioned, ​@Dinakar Gollapinni, that the filtering disappears, is that inside of charts?

Ohh you are right. Sorry, I did not understand before. I scrolled to 2020 and i can see my data now.


And yes, In charts, when i click Add Data and choose time series, and apply filter on ExternalID, when i change tabs in my browser and come back to the charts tab, the external Id filter i applied is gone, and i have apply the filter again.


​@Dinakar Gollapinni Thank you for your feedback, I will take it back to the Charts team and let them know!

Have a nice weekend!

I found the helpful resource article for the error ERR_CERT_AUTHORITY_INVALID and it can occur due to when a browser cannot verify an SSL certificate for a particular website. You can check out the solution guide in detail and maybe it will be helpful, also to get rid of the error.

I hope it helps!

Hello.  I have moved on to the data point transformation in learning path.  I have created transformation for data points , but when i check time series ID there is no data appear.

thanks in advance

Hi ​@Mohamed Ali

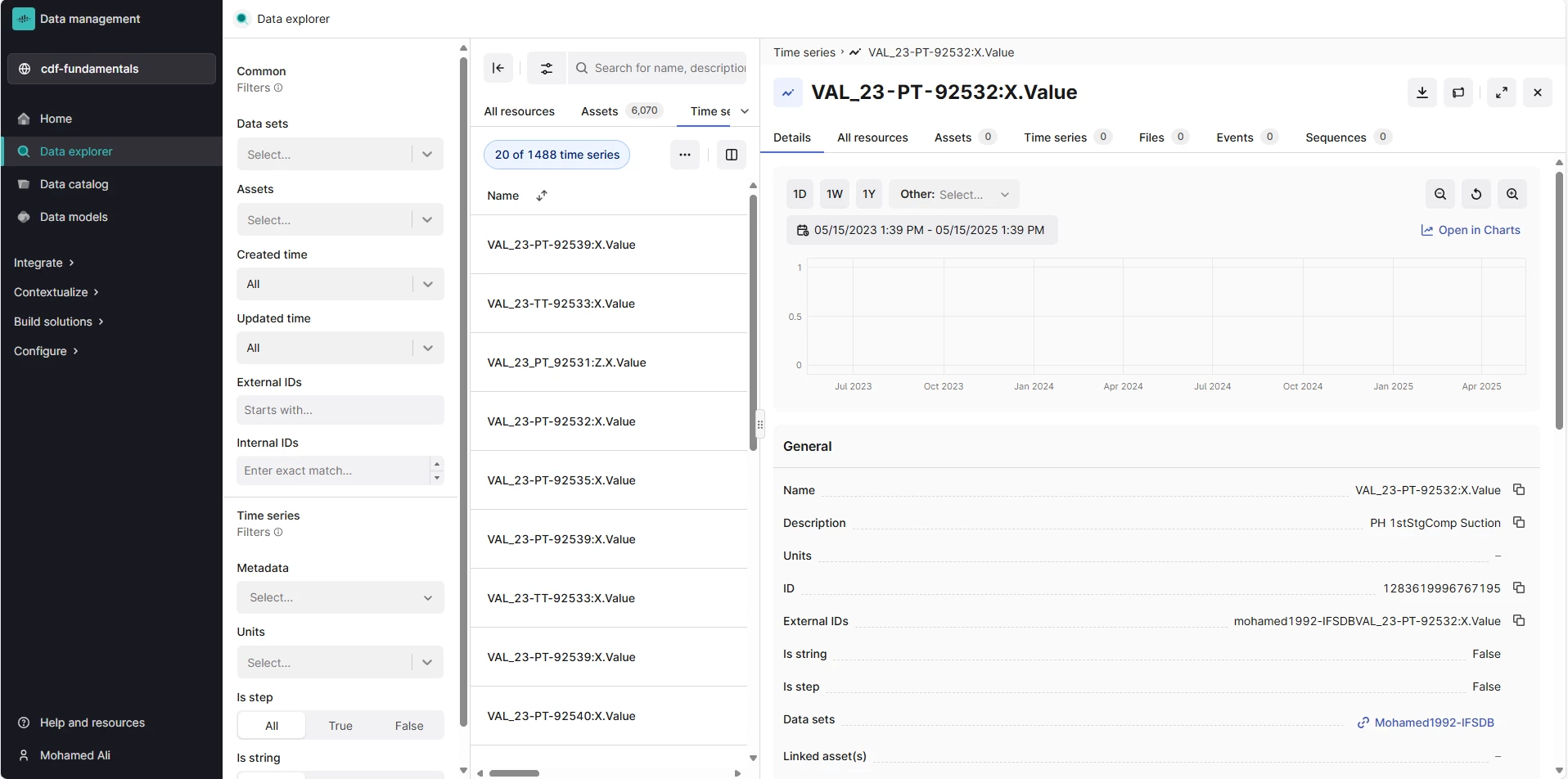

When I go into your data set to investigate your data I find you have used 2 different prefixes with the external ids.

For you assets, you have used; concat('mohamed1992:',loc)
for time series, you have used; concat('mohamed1992-IFSDB',tag)

this results in 2 things:

• you are not able to link your time series and assets
• you are not able to add your datapoints when referencing to concat('Mohamed1992',dp.sensor

When trying to link assets and time series, you are trying to match:
mohamed1992-asset with mohamed1992-IFSDB-timeseries.

The way the written code works in the current state of the time serie transformation is written, it will not find a match on this.

Secondly, trying to write the datapoints, you are trying to create datapoints, say that you want to add the datapoints to the time series with external id = mohamed1992:timeseriesname, while the current external id of the time series = mohamed1992-IFSDBtimeseriesname

I hope you understand what I’m trying to explain here ​@Mohamed Ali ?

However, the solution is:


• Go back to the time series transformation (the one without the assets linking), and re-run it with the correct prefix. this will update the existing time series. Make sure you are consistent in the prefix you are adding, just by using ‘mohamed1992:’ vs ‘mohamed1992’ can also cause issues.
• Then continue the steps from there.

  Please let me know if there are anything I can help out with. I can also go in and change the external ids for you if want me to?


Best regards,

Thank you ​@Sofie Haug
everything is working well now. I really appreciate the support.
